Planck map: HFI_SkyMap_217-ds2_2048_R2.02_full-ringhalf-1
Download HEALPix FITS file: HFI_SkyMap_217-ds2_2048_R2.02_full-ringhalf-1.fits (1.9G)
View HEALPix FITS header: header.txt
This file contains 10 fields:
| I_STOKES |
 |
|
| Q_STOKES |
 |
|
| U_STOKES |
 |
|
| HITS |
 |
|
| II_COV |
 |
|
| IQ_COV |
 |
|
| IU_COV |
 |
|
| QQ_COV |
 |
|
| QU_COV |
 |
|
| UU_COV |
 |
|

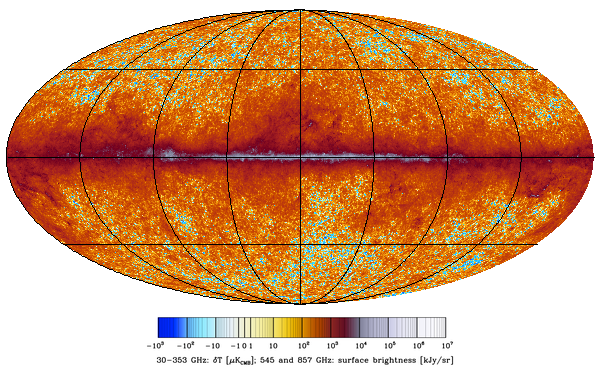

The I_Stokes image displays the intensity in each specific band in units
of thermodynamic temperature (K_CMB) for 30-353 GHz and in surface
brightness (MJy/sr) at 545 and 857 GHz.

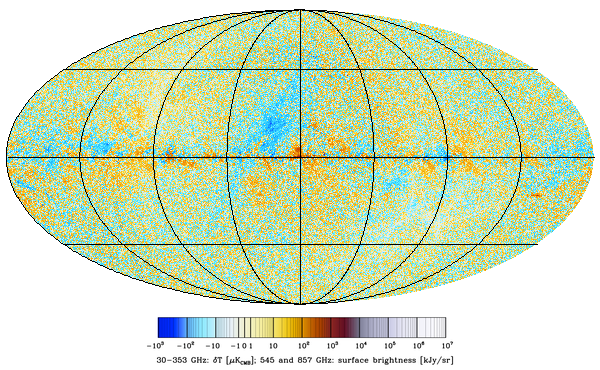

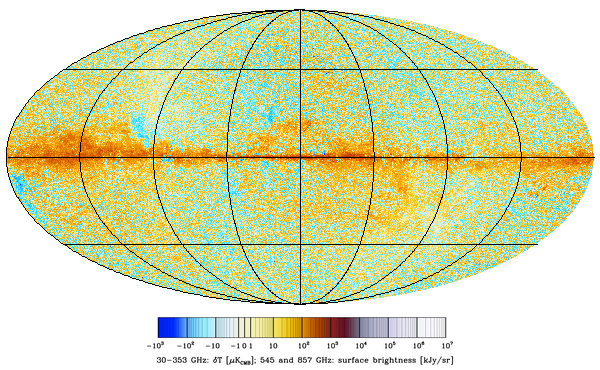

The Q_Stokes and U_Stokes images display the polarized brightness in the corresponding Stokes parameters, in units of thermodynamic temperature (K_CMB).
The Hits image displays the number of observations falling within each
HEALPix pixel.

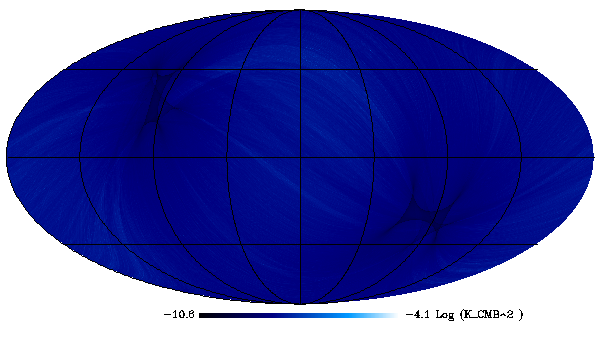

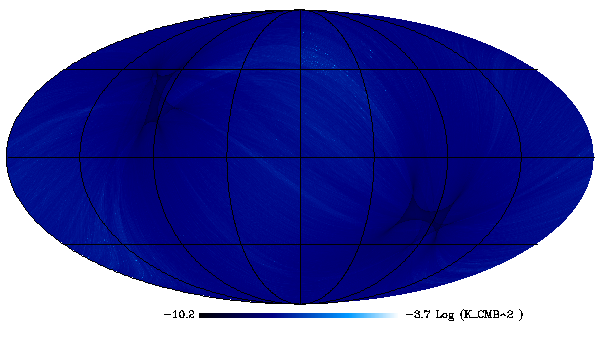

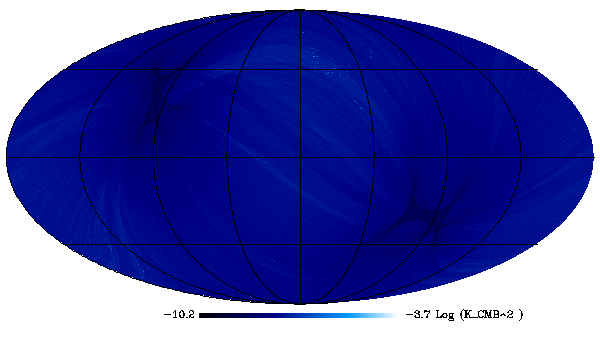

The II_Cov, QQ_cov, and UU_cov images display the variance in the corresponding Stokes parameter images, in units of K_CMB2 for 30-353 GHz and in (MJy/sr)2 at
545 and 857 GHz.

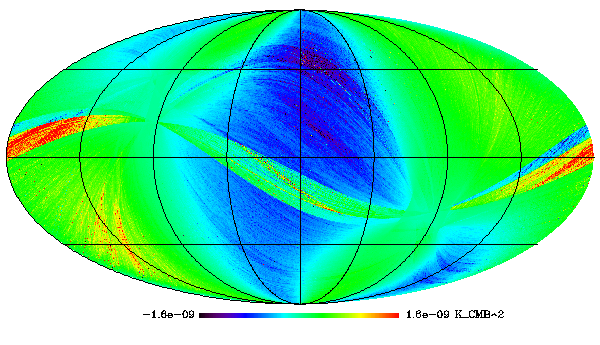

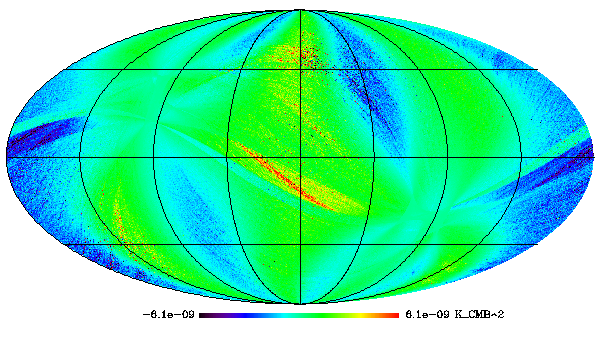

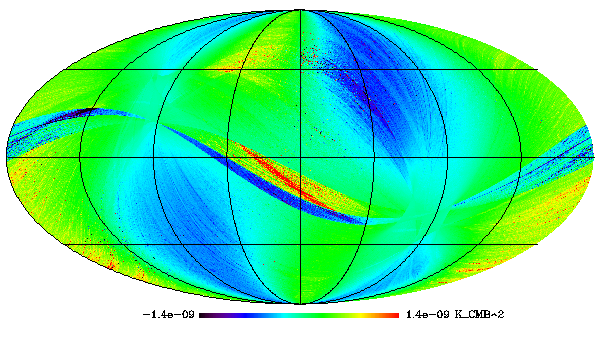

The IQ_Cov, IU_cov, and QU_cov images display the covariance inbetween the corresponding Stokes parameter images, in units of K_CMB2 for 30-353 GHz.
